Wood Cnc Router 1325 Wood Door Milling CNC Router Machine

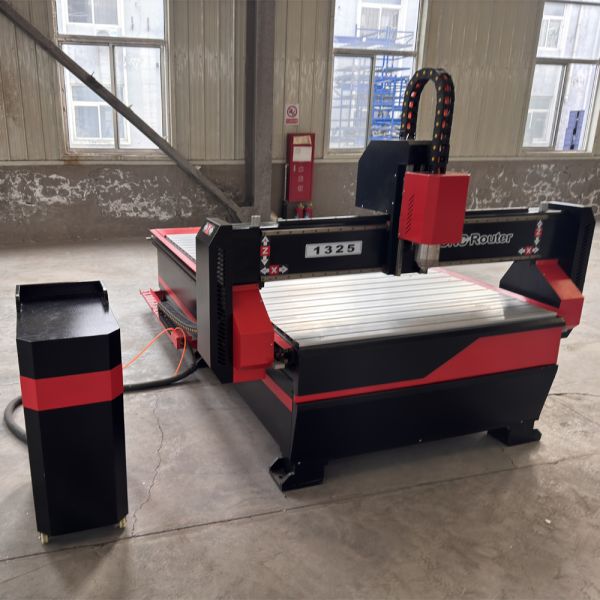

The BH-1325 is a powerful and accurate CNC router built for demanding professional use. It is perfect for cutting and engraving a wide variety of materials, including different types of wood, plastics, acrylic, and soft metals. With its strong build and high-quality parts, this machine delivers steady and precise results, making it a great choice for workshops and factories.
Key Features for Superior Performance
1. Generous Work Area and Strong Frame
The machine features a large work area of 1.3 by 2.5 meters. This size is ideal for handling standard material sheets, helping to reduce waste. Its main frame is built from welded square steel tubes, giving it great stability and the strength to handle heavy work. The design can also be taken apart, which makes moving and installing the machine much easier.
2. Precision Movement and Drive System
For smooth and accurate movement, all three axes (X, Y, and Z) use heavy-duty 20mm square linear guides. The machine moves using a precise gear system, ensuring it follows commands exactly. The Z-axis, which moves up and down, uses a reliable belt and gear combination for consistent performance.
3. Powerful Motor and Spindle
The BH-1325 is equipped with strong stepper motors and matching drivers. This system provides reliable power and consistent force for smooth operation. At its heart is a high-speed, 3.2KW water-cooled spindle. This spindle can reach speeds up to 24,000 RPM, allowing for clean, fast, and detailed cutting and engraving. It is managed by a capable frequency converter for stable speed control.
4. Practical Table and Easy Control
The work table is made from aluminum profiles and PVC, designed to be both durable and functional. Its structure supports the use of vacuum pods, which can hold materials flat and secure during the machining process. Running the machine is simple with the user-friendly JM Weihong operating system. It works with standard G-code and has a clear interface, making it accessible for both new and experienced users. All the electrical parts are safely housed in a separate control cabinet.
Technical Specifications
| Component | Specification |
| Effective working stroke | 1.3m * 2.5m (standard board size) |
| Bed structure | Square tube welded bed, detachable |
| Transmission components | Three-axis 20 square rail and slider |
| Machine rack | 1.25M high-precision gear rack |
| Z-axis component | Drive belt + gear transmission |
| Whole machine motor set | Chuangwei 450B stepper motor |
| Driver | Skyworth 860 Driver |
| Spindle power | 3.2KW water-cooled spindle (24,000 RPM) |
| Frequency converter | Bestech 4.0KW frequency converter |
| Table structure | Aluminum profiles + PVC, profiles vertically laid |
| Operating System | JM Weihong |
| Cabinet | Independent chassis control cabinet |
| Machine color | Grayish green (customizable) |
| Working voltage | 380/220V 50Hz |
Note: Custom configurations available. Contact us for specific requirements and pricing.
Applications
- Woodworking: Furniture, doors, windows, and panel processing
- Advertising: Signage, logos, and acrylic displays
- Prototyping: Architectural models and wood patterns
- Creative Arts: Musical instruments, decorative engravings, and craft items
Frequently Asked Questions
Q: Can you customize the machine?
A: Yes, we offer customization of color, size, and logo.
Q: Where is your factory located?
A: Our manufacturing facility is in Qingdao, Shandong Province, China.
Q: Can you build machines to my specifications?
A: Our engineering team can develop custom solutions based on your requirements.
Q: Is the machine easy to operate?
A: We provide instructional videos, English manuals, and training support.
Q: What are your shipping terms?
A: MOQ is 1 unit, shipped directly to your designated port.
Q: What after-sales support do you offer?
A: We provide 24/7 support, online training, and warranty repairs.
Contact us today for more information and custom quotes!
