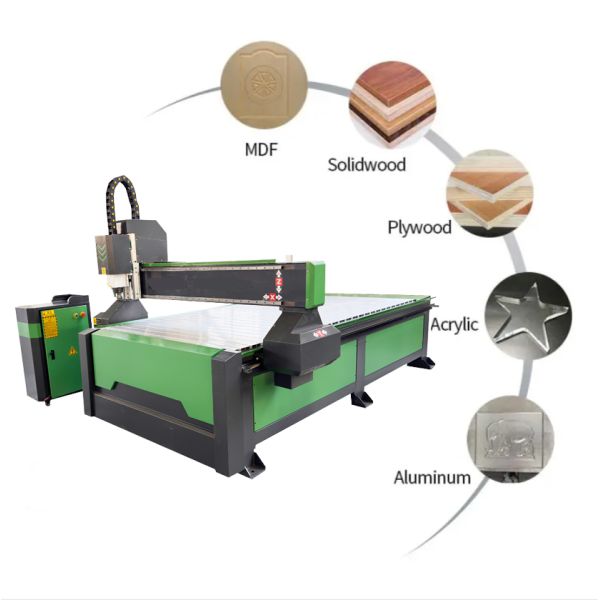

1325 Woodworking Machinery Nesting and Drilling CNC Routers
Product Overview
Engineered for excellence, our CNC router combines robust construction with an advanced PC-based controller to ensure reliable performance. Key advantages include:
Stability & Precision: A professional-grade controller guarantees accurate and consistent results.
Cost-Effectiveness & Support: Known for its great value and backed by exceptional after-sales service.
Technical Specifications
| Component | Specification |
|---|
| Fuselage structure | Square tube welded bed body, detachable |
| Longmen structure | Thickened square steel gantry, cast iron columns |
| Mesa structure | Aluminum profiles+PVC, vertical laying of profiles |
| Body size | 3100*2000*1750mm |
| Table size | 1300*2500mm |
| Effective work schedule | 1.3mX2.5m (standard board size) |
| Machining accuracy | 0.05mm |
| Transmission structure | Three axis 20 square track and slider |
| Rack | 1.25m high-precision gear rack |
| Z-axis component | Drive belt+gear transmission |
| Motor set | Chuangwei 450B stepper motor |
| Driver | Skyworth 860 Drive |
| Spindle power | 6.0KW air-cooled spindle, speed 24000 RPM |
| Frequency converter | Zhuzhou 7.5KW frequency converter |
| Operating system | JM Weihong |
| Cabinet | Independent chassis control cabinet |
| Machine color | Grayish green |
| Working voltage | 380/220V 50Hz |
Special reminder: Different customers can customize models and configurations according to their needs. Due to product variety, orders require prepayment. We provide quotations based on customer requirements. Please confirm actual pricing with our staff according to product model configuration. Contact us immediately for more product information!
Key Features
MACHINE PARTS
Brand: BH
Origin: China Features: long lifespan, low noise, free maintenance |
|
MAIN FEATURES
Three-axis 20 square rail and slider
Brand: BH
Origin: China
Features: fast running speed and strong bearing capacity |
|
MACHINE PARTS
Name: T-slot Table Brand:BH Origin: China Features: much more economic |  |
MAIN FEATURES
Origin: China
Name: independent control cabinet Features: easy to operate and simple to control |  |
- Aluminum profile with PVC countertop: Large aluminum profile surface provides stable load-bearing capacity, with PVC base protecting the aluminum profile.
- Stepping motor: High-quality spindle and cutting head enable long operation time, reduced losses, fast bearing speed, and low noise.
- Square steel gantry frame: 1cm thick heat-treated square steel gantry frame ensures good rigidity, smooth operation, and high machine accuracy.
- Drag chain: New wear-resistant drag chain with separated signal and power lines prevents signal interference and eliminates cable distortion during operation.
Applications
Woodworking Industry:
- Plank plate and solid wave board processing
- Screen and sashed window processing
- Wooden door, engraving and cutting of cabinet gate
- Engraved wooden gate and paint-free gate
- Various furniture product auxiliary processing
Other Industries:
- Advertising label and logo manufacture
- Acrylic cutting and plastic suction for ad dedication
- Building model, wood pattern, aero wood pattern, propeller, foam vehicle mould
- Tri-dimensional surface of violin, Erhu and other musical instruments
- External cutting and engrave pattern, handwriting or frame on instruments
- Various shadow carving and basso-relievo for craftwork gift industry
Frequently Asked Questions
Q1: Can customized services be supported?
A1: Yes, we can customize the color, size and logo you need.
Q2: Where is your factory located?
A2: We are a Chinese manufacturer in Qingdao city, Shandong province.
Q3: Can you make the machine according to my design or prototype?
A3: Yes. We have professional designers to create the most suitable design and production plan for your requirements.
Q4: This is the first time I use this kind of machine, is it easy to operate?
A4: We provide guide videos and English instruction manuals with the machine. Our team offers free professional guidance until you can operate the machine proficiently.
Q5: What's your MOQ and delivery?
A5: Minimum order quantity is 1 set. We ship directly to your country's port - please provide your port name for the best shipping rates and machine pricing.
Q6: How is your after sales service?
A6: Our sales team is available 24/7. We also provide overseas installation services.
Q7: If my machine is broken, can you repair it for me?
A7: Yes. We offer free online training. For major issues during warranty period, we provide repair services.
